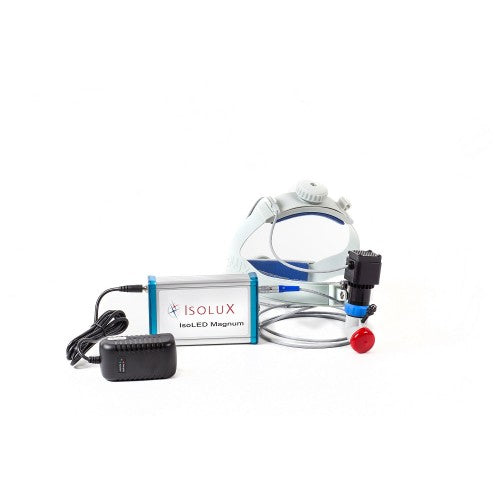

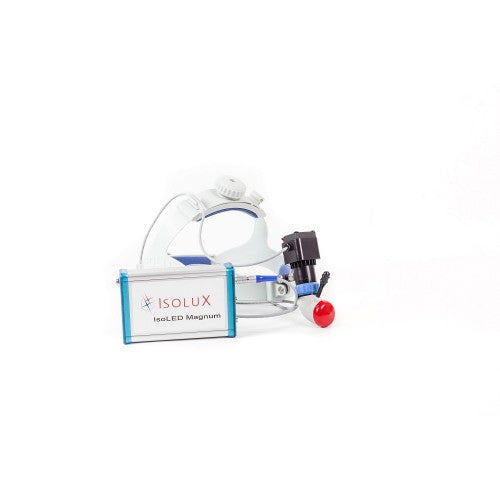

IsoLED Magnum Surgical Headlight

by Isolux

IsoLED MagnumThe Magnum delivers the brightest white light available white light being essential to successful surgical outcomes via a homogeneous spot for true tissue color rendition.

Built without compromise

The fourth option in IsoLux’s successful line of LED headlights for the discerning surgeon. LED operation allows the user the freedom to be untethered from a light source due to its battery-operated design.

Up to 75000 Lux at a 12″/30cm working distance

Audible and vibrating warning when battery life is low

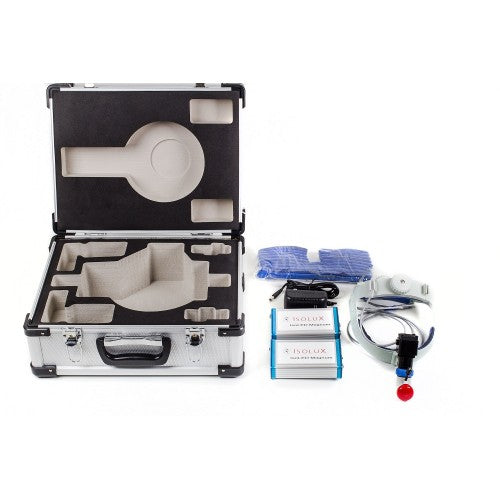

Carrying / shipping case for storage and protection

Optical Module with variable spot size: 10mm-110mm @ 12″/30cm

Optional back up AC version is available to protect against battery failure

Lightweight battery packs(x2)with clip on holster provide 3hr 30 min of continuous light each at Hi intensity level

Download the brochure for more details

 IsoLED Magnum Specifications

LED Life: > Over 50000 Hours
Joy stick detachable: For easy spot movement
AC option: 80K Lux @ the Hiintensity level–7 oz / 200grams
Two battery controllers shipped: On each order to enable 7 hours or continuous operation at Hi intensity
Battery and Holster Weight: 12oz/ 350 grams
Color Temperature: 5000°K
Optical Module Weight: 9oz/ 250 grams
Three Intensity Levels: 30K lux 50K Lux and 75K Lux all @12″ / 30cm
Battery Charger and AC Controller: Accept 100-240V AC 50/60 Hz input for worldwide operation
Battery Recharge Time: 3.5 hrs
Variable Module Spot: 10mm-110mm @ 12″ / 30cm
Lightweight Comfortable: Headband with washable foam inserts
Battery Life: 3hrs 30 min @75K Lux 6 hours at 50K Lux and >10 hours at 30K Lux
Warranty: Three (3) Years on LED Headlight and One (1) Year on Battery Pack

IsoLED Magnum Headlight Manual
